One Only Reduced To Clear

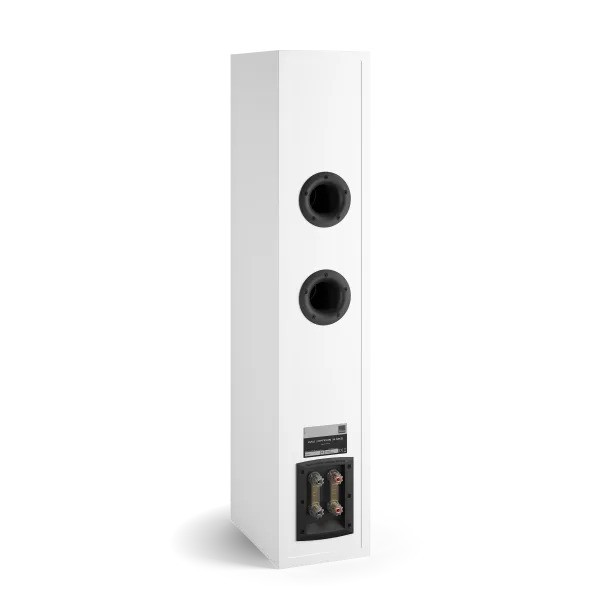

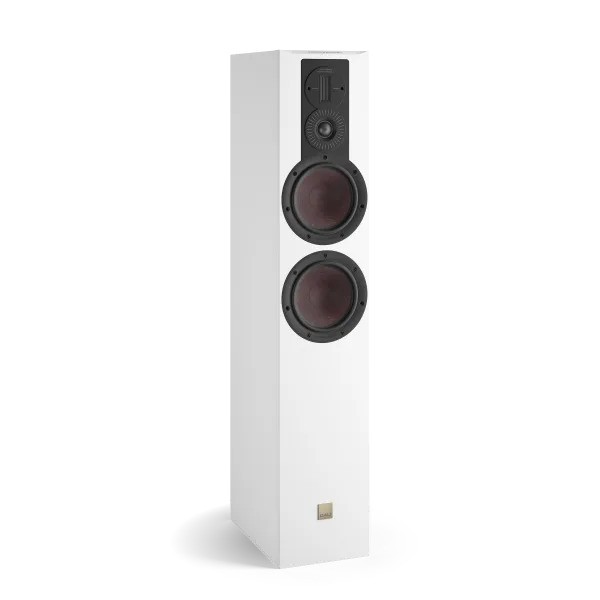

Dali Opticon 6 MK2 Floorstanding Speakers

The slim, floor-standing OPTICON 6 MK2 is the entry point in the OPTICON MK2 series for the renowned DALI hybrid soft dome and ribbon tweeter. The hybrid tweeter offers a significant advance in high frequency resolution and has been improved for OPTICON MK2 by incorporating the CALLISTO derived 29mm dome alongside a 17mm x 45mm ribbon element in a re-engineered, cast aluminium faceplate. OPTICON 6 MK2 low frequencies and midrange are handled by twin 6 1⁄2” Wood Fibre diaphragm, SMC magnet bass/midrange drivers, the lower one of which is gradually attenuated into the midrange band.

The OPTICON 6 MK2 offers optional bi-wiring to enable its bass/midrange and high frequency sections to be connected independently. Twin bass drivers, Dual Flare reflex loading, and the increased internal volume provided by its floor standing enclosure enable the OPTICON 6 MK2 to achieve significantly greater low frequency extension and bass volume level than the stand mount OPTICON MK2 systems. And it combines that bass performance with brilliant, midrange clarity and the sparkling high frequencies that are characteristic of the DALI hybrid tweeter.

The OPTICON 6 MK2 is supplied with cast aluminium foot components that can be fitted with either black chrome plated floor-spikes or, when installed on sensitive floor surfaces, vibration damping pads. Tools for attaching the foot castings and spikes are included.

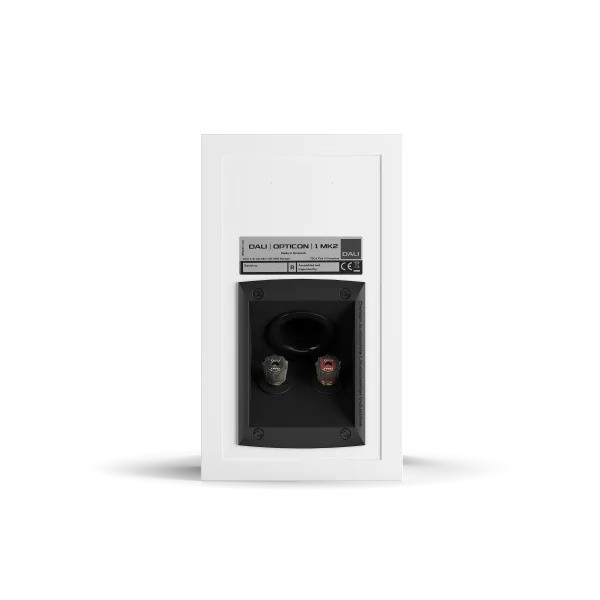

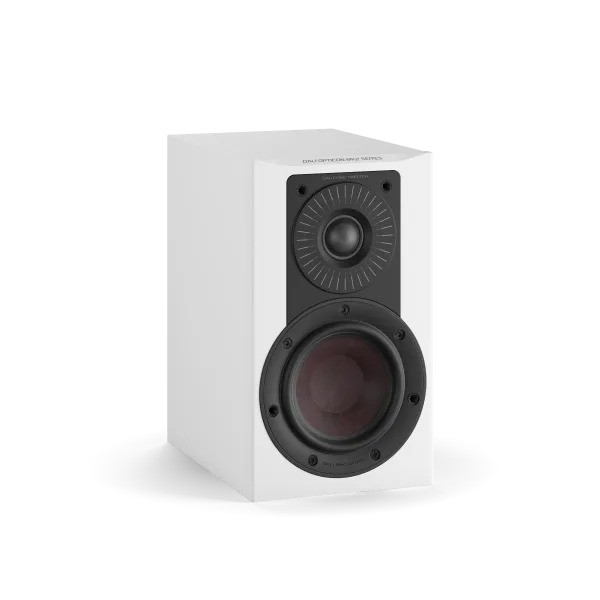

Dali Opticon 1 MK2 Bookshelf Speakers

The OPTICON 1 MK2 is a compact stand mount speaker designed to be installed close to room boundaries or wall mounted in modest listening spaces. Its drivers comprise a 4 3⁄4” Wood Fibre diaphragm, SMC magnet bass/midrange unit and a newly designed 29mm soft dome tweeter derived from that employed in the CALLISTO series. The Dual Flare reflex loaded 5 Litre enclosure enables the OPTICON 1 MK2 to deliver remarkable bass performance for its size that integrates perfectly with the inherent midrange and high frequency quality of its drivers. The OPTICON 1 MK2 is supplied with a simple keyhole slot wall mounting bracket.

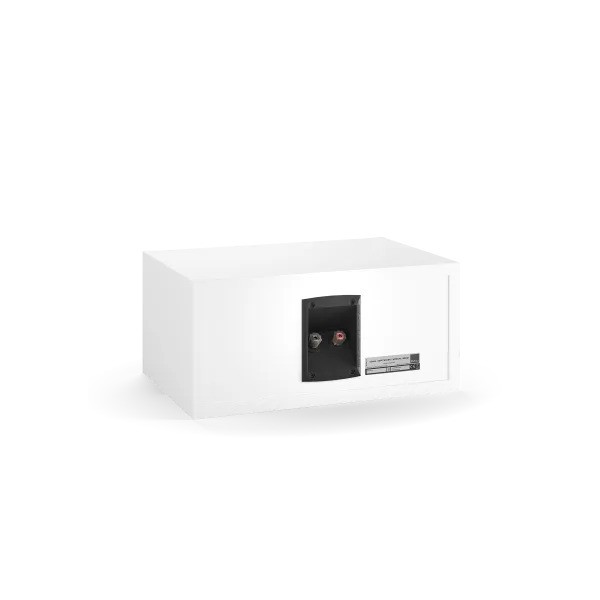

Dali Opticon Vokal MK2 Centre Speaker

The OPTICON VOKAL MK2 brings a 6 1⁄2” Wood Fibre diaphragm, SMC magnet bass/midrange driver and the DALI hybrid tweeter together in an enclosure format designed specifically for centre channel applications in multi-channel audio-visual systems. The OPTICON VOKAL MK2 enclosure dimensions and proportions are specifically configured to enable its installation in audio-visual furniture units, and its front facing reflex ports mean that even fully enclosed mounting is feasible. The OPTICON VOKAL MK2 is specifically voiced to play the centre channel role, but at the same time it displays all the characteristic qualities that enable it to dovetail perfectly in a full OPTICON MK2 audio visual system.

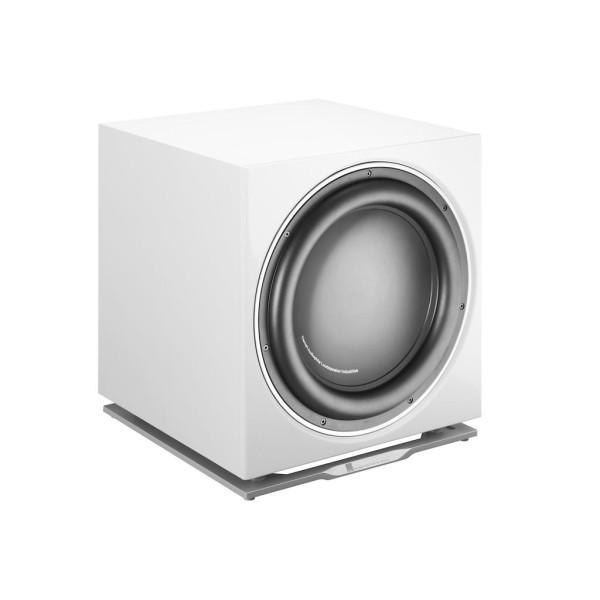

Dali K14 Subwoofer

High-Yield Amplifier

DALI subwoofer amplifiers have the stamina to maintain high-yield performance and the headroom to handle the most challenging audio.

Flexible Connectivity

With LFE and LINE inputs, DALI subwoofers are compatible with almost any amplifier or receiver.

Elegant, Simple Design

The cabinet and driver are perfectly matched to deliver a powerful bass performance.

Rigid Cone Structure

The rigid aluminium or carbon fibre cone eliminates the need for a dust cap and provides linear, piston-like driver movement.

PERFECT PLACEMENT

Maximise the bass output and distribution around the room

Placing a subwoofer is a large part of creating the perfect audio reproduction. To maximise the bass output and distribution around the room, DALI recommend placing the SUB K-14 F in a corner or, if that's not possible, along a wall. The subwoofer’s relatively compact size makes placing it correctly much easier than many larger subwoofers. For best results, they recommend pairing the SUB K-14 F with the RUBICON (C), OPTICON MK2 and OBERON (C) series speakers.

14" ALUMINIUM WOOFER

Keeping distortion to an absolute minimum

The SUB K-14 F incorporates a large 14" woofer with a black aluminium cone that's stiff, lightweight and delivers a greater transient response than you would expect from a subwoofer in this category. The ability to start and stop quickly is at the heart of our loudspeaker design philosophy, and it lets the SUB K-14 F integrate easily with front speakers of any size, from bookshelfs to floorstanders. Also, the construction of the SUB K-14 F cone avoids the need for a dust cap, which ensures piston-like movement and keeps distortion to an absolute minimum.

CLASS D AMPLIFIER

Stamina to keep pushing and headroom to draw out that little extra

Making sure there's enough power to move the large woofer, the 450 Watt RMS Class D integrated amplifier has the stamina to keep pushing and the headroom to draw out that little extra when needed. Constructed for lasting effect, the amplifier is powered by a switch-mode power supply (SWPS) that helps keep the module at a low working temperature and avoids the need for an external heat sink. You can read more about this in the SUB K-14 F whitepaper available in the downloads section below.

CABINET DESIGN

Designed and manufactured to meet exacting DALI standards

Cleverly designed, the SUB K-14 F is a big subwoofer, but with a non-intrusive design. The 14" woofer reaches almost to the edge of the elegant-looking high gloss front baffle, giving the appearance of a large woofer and small cabinet. Built from solid MDF, the cabinet abides by the tough DALI specifications and gives the woofer an impressive 44 litres to work within. The cabinet enclosure comes in two finishes: Black Ash with a black high gloss front baffle, and White Silk Matte with a white high gloss baffle.
