key Features

Apple AirPlay and Google Cast

Spotify Connect and TIDAL Connect built-in

Apple Music, BBC Sounds, Deezer, Qobuz and more

Hi-Res music file support up to 32-bit 384kHz

Internet/DAB/DAB+ and FM tuners

HDMI ARC/eARC connection

Ruark Audio R610 Music Console

The Stereo Music Centres of the 1970s started the hi-fi revolution and Ruark’s new R610 Music Console brings this highly popular concept back and completely up to date. With comprehensive connection and streaming capabilities, R610 has been designed and crafted for sound, to get people back to the joy of music.

Designed to Perform

R610 Music Console delivers aesthetic appeal seldom seen among hi-fi components and this same devotion to detail is matched within. Powering R610 is a modern switch mode power supply, providing optimised powerlines to the system’s motherboard and latest generation digital amplifiers. With Burr-Brown DACs and audio grade components used throughout and a nominal output of 75 watts per channel, R610 is controlled and dynamic – but most importantly, it delivers a delightfully natural sound that makes music thoroughly enjoyable.

You’re in Control

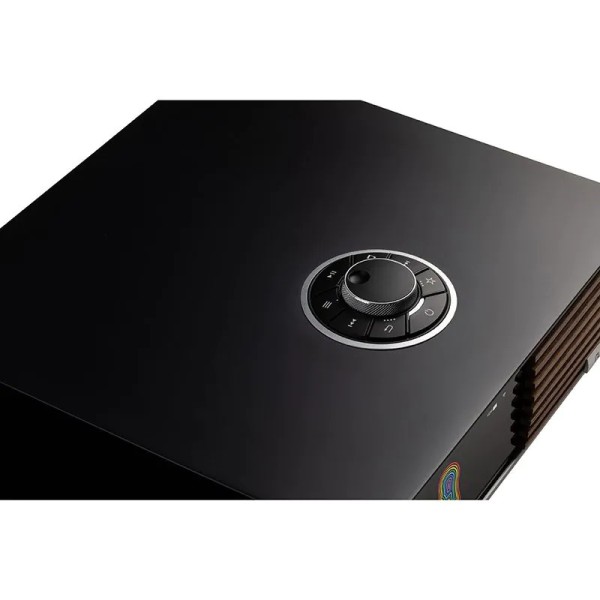

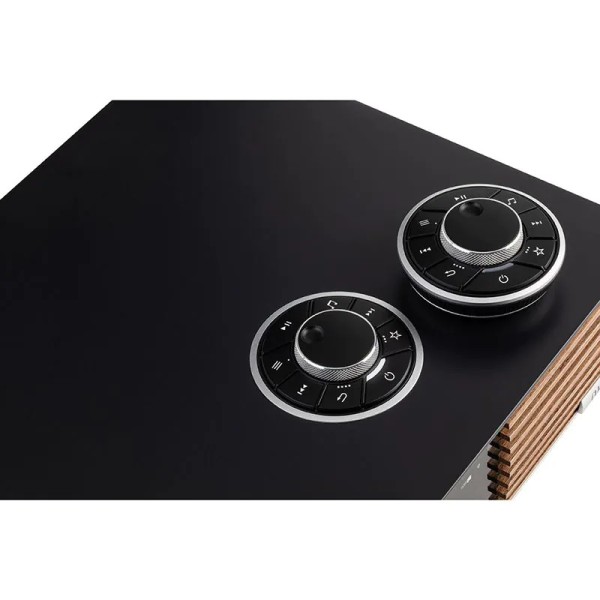

Ruark’s RotoDial controller has been a distinctive part of their products since 2006. For 100 Series they have refined its design further and with tactile soft touch buttons and a precisely weighted control dial, it makes operating R610 a delight. Enhancing the operating experience is the crisp 5" TFT display which confirms every command, as well as showing album and station artwork in perfect clarity. Also included is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required, so you can relax and fully control R610 from afar.

Divine Connection

The R610 streaming amplifier provides all the connectivity you are ever likely to need, and with a powerful processor it is capable of handling the highest quality audio streams. With Internet Radio, Spotify Connect, Tidal Connect, Apple AirPlay and Google Cast all built in, a vast selection of music awaits to be discovered.

R610 also makes it easy to rediscover treasured physical music formats. A quality phono stage makes it simple to connect a turntable, while for CD playback Ruark will soon be unveiling their own Compact Disc Player called R-CD100. This will integrate and connect with R610 and Ruark’s other 100 Series models via the USB socket on the rear. Last but not least, R610’s HDMI ARC/eARC connection provides a great sound solution for those seeking a system that also elevates TV and film enjoyment to a new level.

Audio

Amplifier: 2 × 75W per channel Class-D

Frequency response: 22Hz-22kHz +0/-3dB

Enhancements: Stereo+, bass, treble, loudness

DAC: Up to 32-bit/384kHz resolution

Features

Display: Hi-contrast 5" colour TFT

Auto-Standby: Automatic power saving mode

Adjustable input levels: Line-in, phono-in, optical and HDMI

USB Charge Port: USB-C 5V 1A (5W)

Software Updates: Over-the-air and USB

Controller: Ruark RotoDial control system

Remote control: Ruark RotoDial Bluetooth rechargeable remote

Presets: 20 global presets

App control: Via Spotify, BBC Sounds and more

User interface languages: Multilingual

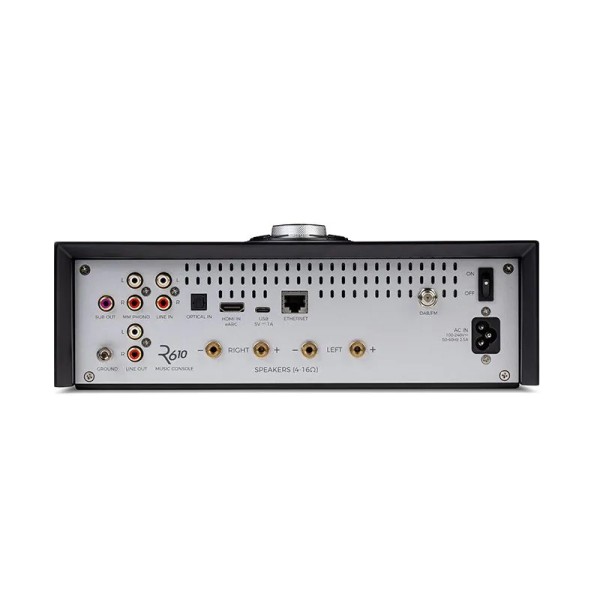

Connectivity

Radio: Internet Radio, DAB/DAB+ and FM with RDS (87.5-108MHz)

Multiroom capable: Via Apple AirPlay and Google Cast

Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2

Streaming: Apple AirPlay and Google Cast

Built-in music services: Spotify Connect and TIDAL Connect

Supported music services: Amazon Music, BBC Sounds, Deezer, Qobuz and more

Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP

Ethernet: RJ45 connector 10/100 Mbps

DLNA: UPnP™ DLNA media server compatible

CD support: CD playback via external USB CD drive (optional)

HDMI: ARC and eARC

Line-input: Stereo RCA input (up to 2.3Vrms)

Turntable input: Stereo RCA input with RIAA MM phono gain stage (up to 8mV)

Line-output: Selectable Line-out/Pre-out, via stereo RCA connectors

Subwoofer-output: Volume related full-frequency mono RCA connector

Optical input: TOSLINK digital input up to 24-bit 192kHz

USB-C: playback port

Aerial connector :75Ω F-type

Supported Audio Formats

FLAC, AIFF, ALAC and WAV: up to 32-bit 384kHz

MP3: up to 48kHz 320kbps

AAC/AAC-LC/HE-AAC/HE-AAC v2: up to 96kHz 320kbps

General Specifications

Standard finishes: Fused Walnut veneer or Satin Charcoal lacquer

Product dimensions:

H95 × W300 × D280mm (cabinet)

H107 × W300 × D280mm (with Rotodial controls)

Product weight: 4.1kg

Product power input: 90-240VAC, 50-60Hz, 2.5A

Power consumption: 2.0W network standby, 8.0W idle
