Monitor Audio SB-3

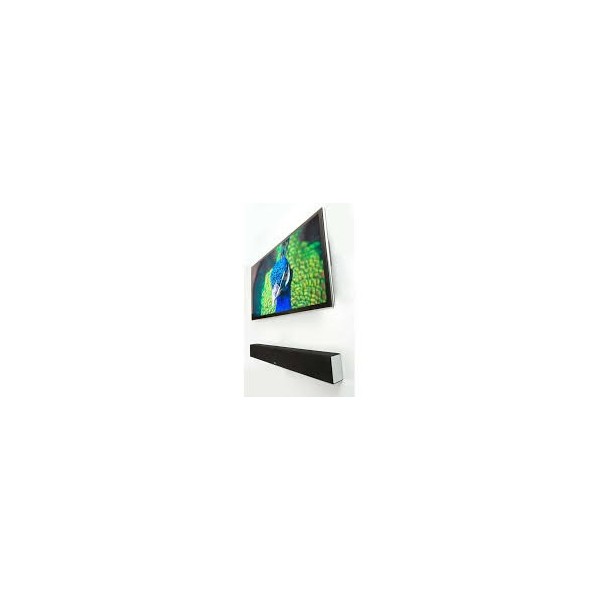

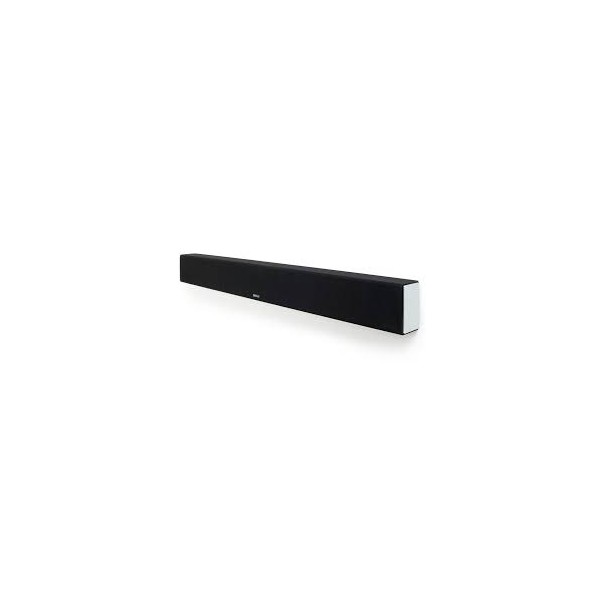

The SB-3 is custom-built for screen sizes above 60" and features three separate driver arrays for left, centre, right channels in a single cabinet. Twin C-CAM® bass drivers, twin ABRs (Auxiliary Bass Radiators) and a single C-CAM tweeter in the centre section to provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction. This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.

In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.

Technology

• Individual C-CAM® (Ceramic-Coated Aluminium/Magnesium) bass/mid driver for left and right channels, twin drivers for the centre channel
• C-CAM gold dome tweeters per channel
• Individual Auxiliary Bass Reflex (ABR) for left and right channels, twin ABRs for the centre channel
• Three separate driver arrays for left, centre, right channels in a single cabinet
• Optional dedicated wall bracket
• Integrated Silicon feet provide a secure cabinet-top mounting alternative.

Gold-Dome C-Cam

The gold dome tweeter is formed from a ceramic-coated aluminium/magnesium alloy, gold anodised to a specific thickness for ideal stiffness and damping characteristics. Its new profile and surround geometry have been developed using advanced modelling tools, to provide the optimum qualities for accurate sound reproduction. The new design moves the first order of breakup to beyond 35kHz, producing a linear response way beyond audibility, which matches the wide frequency bandwidth available from HD music and cinema sound formats. The gold dome is thinner, lighter, more rigid and therefore more efficient than domes made from other materials which are prone to distortion in the audio band.
