LX Series speakers are smart, practical and affordable, sporting a sharp, classic but modern look in keeping with Mission’s customary design focus. Above all, they communicate music with engaging energy and detail, bringing performances to life with all the vibrancy and finesse one expects of Mission speakers.

Brute Strength

While high performance mid/bass and treble units are the foundation of a great sounding speaker, if the cabinet is not properly reinforced it can be an unruly source of unwanted noise.

Extensive research and development was carried out to ensure internal cabinet robustness, eliminating any unwanted cabinet resonances and vibrations. Using a combination CAD analysis, a lot of experimentation and extensive listening tests the cabinet within each speaker has been braced at key points which means the full frequency range is clear and detailed.

The diagram shows areas of bracing and its effect on the sound. Blue areas show where noise is reduced through cabinet bracing, while red areas highlight where there is sound. As you can see, the sound is emanating from the drivers and not from the cabinet, as it should be.

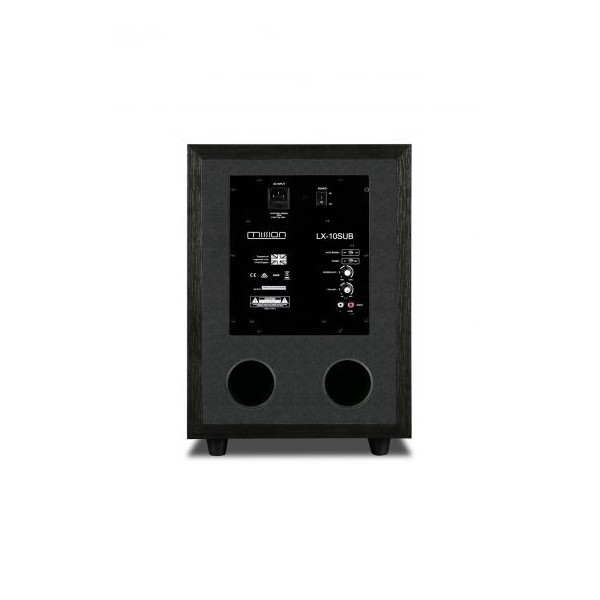

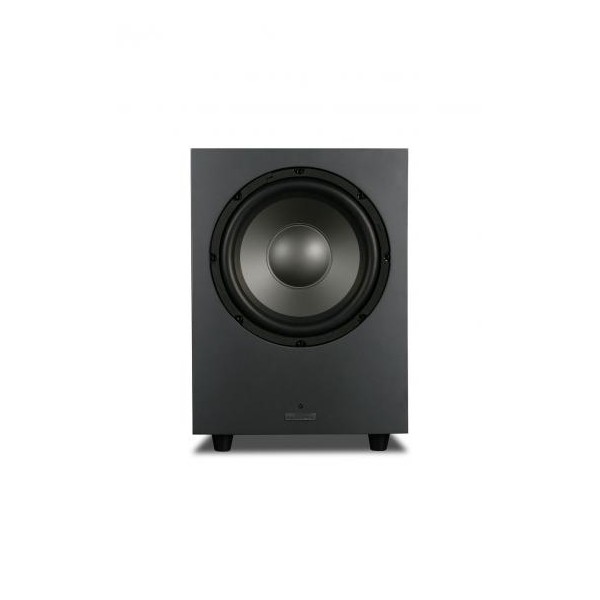

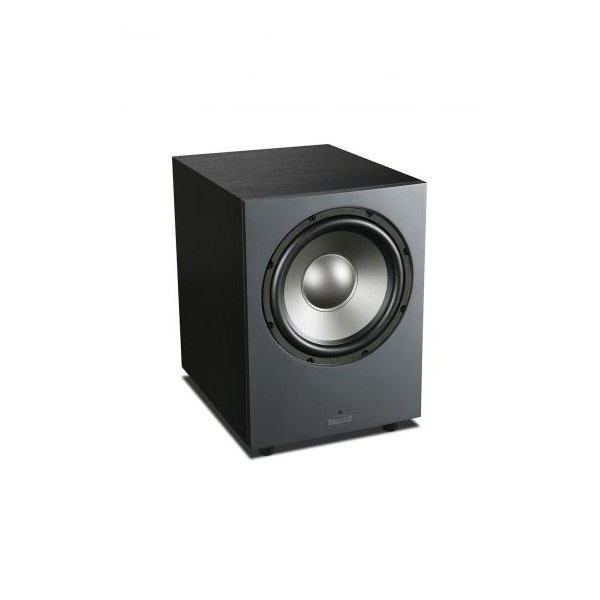

Specifications

- Drive Units: 250mm PP cone long-throw

- Frequency Response: 40- 120 Hz ±3 dB

- Amplifier Power Output: 200 W

- Peak Power Output: 350 W

- Line In Sensitivity: 200 mV for max output

- Crossover Range: 30 - 150 Hz

Inputs:

- Stereo line in (2 x RCA phono)

- Mono (LFE) line in (RCA phono)

Input Impedance:

- Line input 10 Ohms

- LFE 5 Ohms

- Signal-to-noise Ratio (s/n): 85 dB

- Avg. Max Output @1m: 118 dB

- Features: Phase inversion, auto on-off

Dimensions:

- Height with feet: 447

- Dimensions (HWD): 412 x 312 x 392mm

- Net Weight: 16 kg
